How to connect lipo batteries in series?

Connecting Lipo batteries in series is a common practice for hobbyists and professionals alike who need to increase the voltage output of their power systems. Whether you're working with RC vehicles, drones, or other electronic projects, understanding how to properly connect Lipo batteries can significantly enhance your device's performance. In this comprehensive guide, we'll explore the ins and outs of connecting Lipo batteries in series, with a special focus on high-capacity options like 16000mah lipo battery packs.

Series vs. Parallel: Which is Better for Lipo Batteries?

Before diving into the specifics of connecting Lipo batteries in series, it's crucial to understand the difference between series and parallel connections. Each method serves a distinct purpose and offers unique benefits for your power setup.

Series Connection:

1. Increases overall voltage

2. Maintains the same capacity (mAh) as a single battery

3. Ideal for applications requiring higher voltage

Parallel Connection:

1. Maintains the same voltage as a single battery

2. Increases overall capacity (mAh)

3. Suitable for extending runtime without changing voltage

When deciding between series and parallel connections, consider your specific needs. If you're working with a 16000mah lipo battery and need more voltage, a series connection is the way to go. However, if you're satisfied with the current voltage and simply want to extend your device's runtime, a parallel connection would be more appropriate.

It's worth noting that some advanced setups utilize both series and parallel connections to achieve the desired voltage and capacity. This configuration is often referred to as a series-parallel arrangement.

Safety Tips for Connecting 16000mAh Lipo Batteries

Safety should always be your top priority when working with Lipo batteries, especially high-capacity ones like a 16000mah lipo battery. These batteries store a significant amount of energy and, if mishandled, can pose serious risks. Here are some essential safety tips to keep in mind:

1. Use matching batteries: When connecting batteries in series, ensure all batteries have the same capacity, discharge rate, and cell count. Mixing different batteries can lead to imbalanced charging and potential safety hazards.

2. Check for damage: Inspect each battery for signs of physical damage, such as swelling, punctures, or deformities. Never use a damaged battery in your setup.

3. Use proper connectors: Invest in high-quality connectors and ensure they're rated for the current your setup will draw. Cheap or undersized connectors can overheat and pose a fire risk.

4. Balance charging: Always use a balance charger designed for Lipo batteries. This ensures each cell within the battery pack is charged evenly, preventing overcharging and extending battery life.

5. Monitor temperature: Keep an eye on battery temperature during charging and discharging. If a battery becomes excessively hot, disconnect it immediately and allow it to cool down.

6. Store safely: When not in use, store your Lipo batteries in a fireproof container or Lipo-safe bag. Keep them at room temperature and away from flammable materials.

7. Use a voltage checker: Regularly check the voltage of your batteries to ensure they're not over-discharged. Most Lipo batteries shouldn't be discharged below 3.0V per cell.

By following these safety guidelines, you can significantly reduce the risks associated with connecting and using high-capacity Lipo batteries in series.

How Voltage Changes When Wiring Lipo Batteries in Series

Understanding how voltage changes when connecting Lipo batteries in series is crucial for achieving the desired power output for your project. Let's break down the basics and explore how this applies to high-capacity batteries like a 16000mah lipo battery.

When you connect Lipo batteries in series, the voltages of the individual batteries add up, while the capacity remains the same. Here's a simple formula to remember:

Total Voltage = Voltage of Battery 1 + Voltage of Battery 2 + ... + Voltage of Battery N

For example, if you have two 3S (3-cell) Lipo batteries, each with a nominal voltage of 11.1V, connecting them in series would result in a total voltage of 22.2V. The capacity, however, would remain the same as that of a single battery.

Let's apply this to a 16000mah lipo battery scenario:

Suppose you have two 16000mAh 4S Lipo batteries, each with a nominal voltage of 14.8V. When connected in series, you would get:

- Total Voltage: 14.8V + 14.8V = 29.6V

- Capacity: 16000mAh (unchanged)

This configuration would be ideal for applications requiring higher voltage while maintaining the high capacity of the original batteries.

It's important to note that when connecting batteries in series, you must ensure that all batteries have the same capacity and cell count. Mixing batteries with different specifications can lead to imbalanced charging and discharging, potentially damaging the batteries or creating safety hazards.

Additionally, keep in mind that increasing the voltage by connecting batteries in series also increases the power output of your system. Make sure your electronic speed controllers (ESCs), motors, and other components can handle the increased voltage and power.

Here's a step-by-step guide to connecting Lipo batteries in series:

1. Ensure all batteries are fully charged and have the same voltage, capacity, and cell count.

2. Connect the positive terminal of the first battery to the negative terminal of the second battery.

3. The remaining positive terminal of the second battery becomes the new positive output.

4. The remaining negative terminal of the first battery becomes the new negative output.

5. If using more than two batteries, continue this pattern, always connecting positive to negative between batteries.

6. Use a multimeter to verify the total voltage across the new positive and negative outputs.

7. Connect the series-wired batteries to your device, ensuring proper polarity.

Remember, when charging batteries connected in series, you'll need a charger capable of handling the higher voltage. Many hobbyists prefer to disconnect the batteries and charge them individually to ensure balanced charging and maximize safety.

Proper maintenance of your series-connected Lipo batteries is crucial for longevity and safety. Regularly check the voltage of each battery in the series to ensure they're discharging evenly. If you notice significant discrepancies, it may be time to rebalance the pack or replace a battery.

For those working with high-capacity batteries like a 16000mah lipo battery, consider investing in a power distribution board (PDB) designed for series connections. These boards can help manage the power flow more efficiently and often include built-in voltage regulators to protect your components.

As you become more comfortable with series connections, you might explore more advanced setups, such as series-parallel combinations. These configurations allow you to increase both voltage and capacity, offering even more flexibility in your power system design.

It's also worth mentioning that while connecting batteries in series can provide significant benefits, it's not always necessary or advisable for every application. Always consider your specific power requirements and consult with experts or manufacturer guidelines before making significant changes to your power setup.

In conclusion, connecting Lipo batteries in series is a powerful technique for increasing voltage in your projects. By following proper safety protocols and understanding the principles behind series connections, you can safely harness the power of high-capacity batteries like the 16000mah lipo battery to push your projects to new heights.

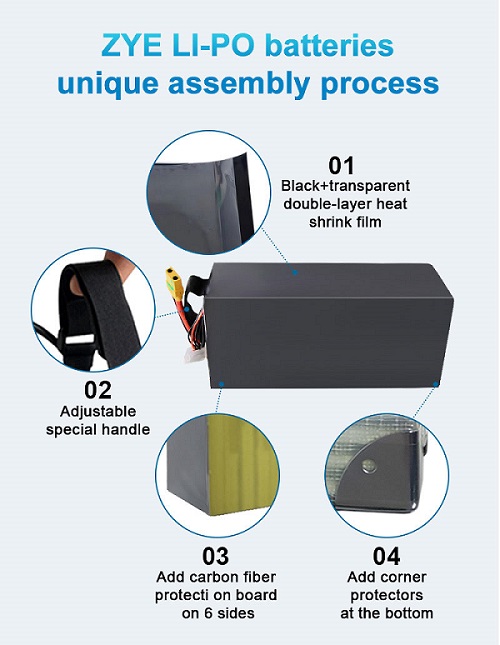

Ready to take your projects to the next level with high-capacity Lipo batteries? Look no further than ZYE's range of premium 16000mah lipo battery packs. Our batteries are designed for optimal performance and safety, perfect for series connections in demanding applications. Don't settle for less – upgrade your power system today! Contact us at cathy@zyepower.com to learn more about our products and how they can revolutionize your projects.
